Current location:Home >Products>Pressure Steam Sterilizer

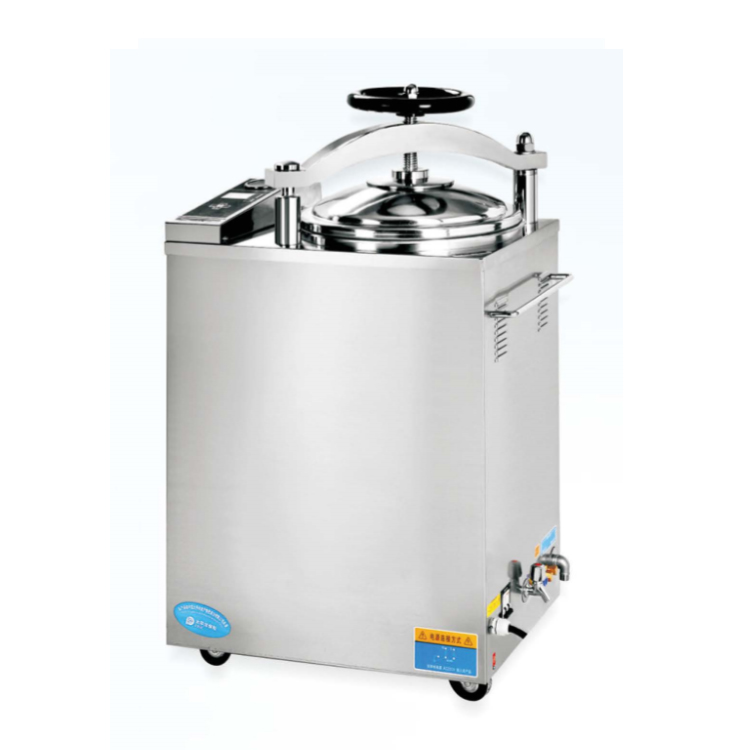

Vertical Pressure Steam Sterilizer

Part parameters

Packaging Details:
Delivery Time:
Description: They are ideal equipments for the scientific research institutes and the hospital laboratory.

Detailed introduction:



Use

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for the scientific research institutes and the hospital laboratory.

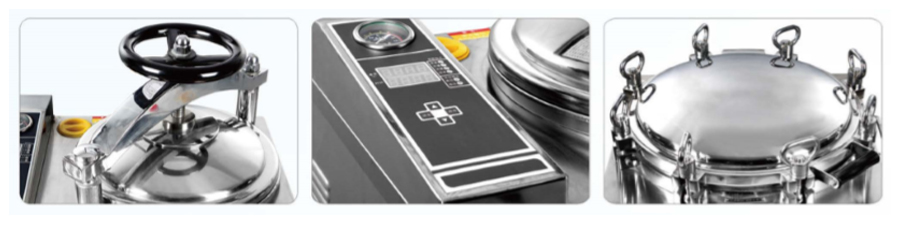

Characteristics

• Fully stainless steel structure.
• Hand wheel type of quick-open door structure.
• Door safety lock system
• Automatically controlled by computer
• LCD display of working status, touch type key
• Over temperature & over pressure auto-protection .
• Steam-water inner circulation system: no steam discharge,and the environment for sterilizing will be clean and dry.
• Self- inflating type seal
• Safe protection of water lacking
• With perfect drying function
• Automatically shut off with beep reminding after sterilization.
• With two stainless steel sterilizing baskets



Fully automatic circulation (specifically use for clinical laboratory)



Technical Data


Technical Date LS-35HG LS-50HG LS-75HG LS-100HG
Chamber volume 35L
φ 318 x 450mm
50L
φ 340 x 550mm
75L
φ400x 600mm
100L
φ440x 650mm





Working Pressure 0.22Mpa
Working temperature 134℃
Max.Working Pressure 0.23Mpa
Heat average ≤ ±1 ℃
Timer range 0~99min or 0~99hour59min
Temperature adjust range 0~134℃
Power

2.5Kw/AC 220V ,50HZ

3Kw/AC 220V,50HZ

4.5Kw/AC 220V,50HZ

Overall dimension 600x410x1030 650x410x1140 690x470x1140 730x510x1270x
Transport dimension 730x500x1170 730x500x1290 760x550x1290 820x600x1380
G.W/N.W 96Kg / 77Kg 102Kg / 83Kg 120Kg / 98Kg 135Kg / 110Kg
